KS0252 Keyestudio Proto Screw Shield

Introduction:

Sometimes you might feel very troublesome when connect the breadboard or sensor shield to Arduino board with a bunch of jumper wires.

Now we have launched this Proto Screw Shield, very reliable and easy for you to connect the wire.

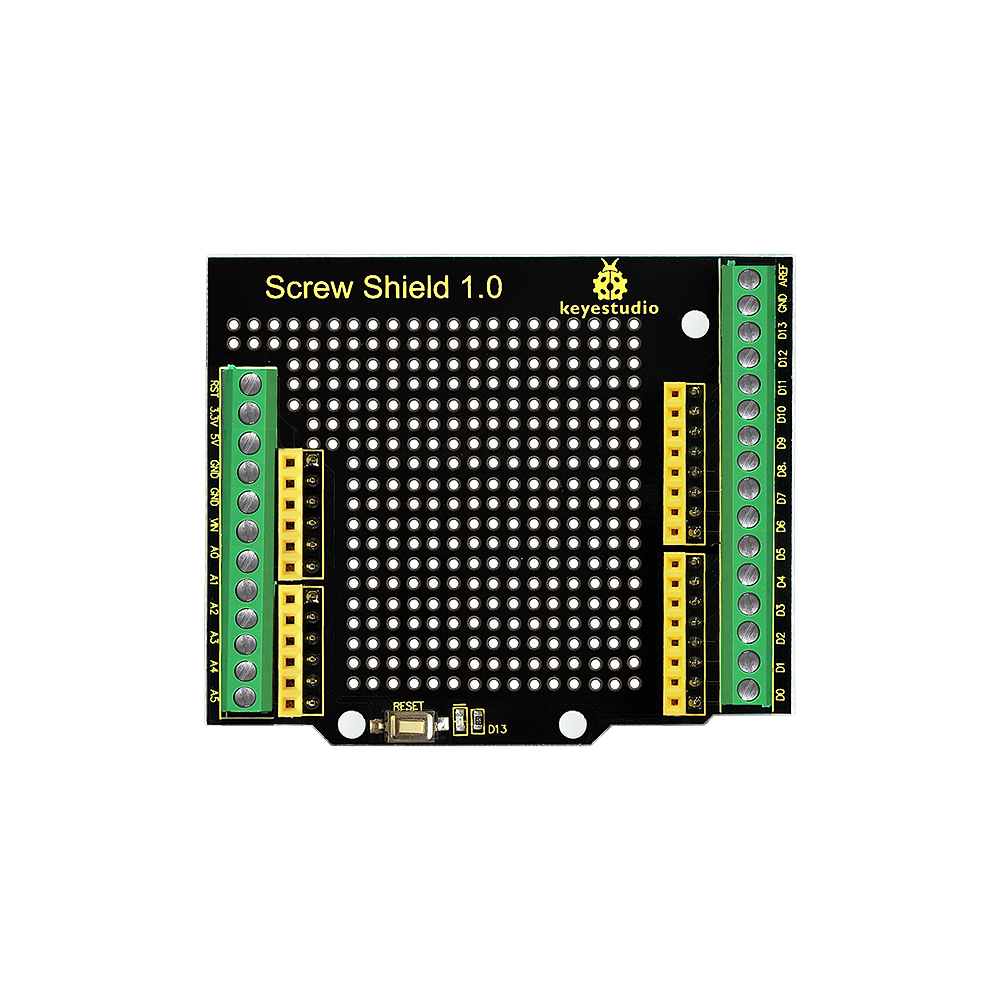

The shield also comes with a double-sided prototyping area so that you can solder some electronic elements to design your various prototype circuits.

It also comes with a reset button and a D13 indicator. This shield is an integration of Arduino Screw Shield and Proto Shield.

Features:

Providing the terminal block IO, convenient for connection.
High-quality terminal block, reliable, convenient and durable.
Compatible with ProtoShield, the middle part can be used as proto shield.
Comes with double-sided PCB through-hole prototyping area, welding some elements as you like.
You can place a tiny breadboard on the through-hole pad to make extension experiments.
Comes with a reset button
Comes with D13 indicator

Parameters:

Controller Compatible:

Technical Details:

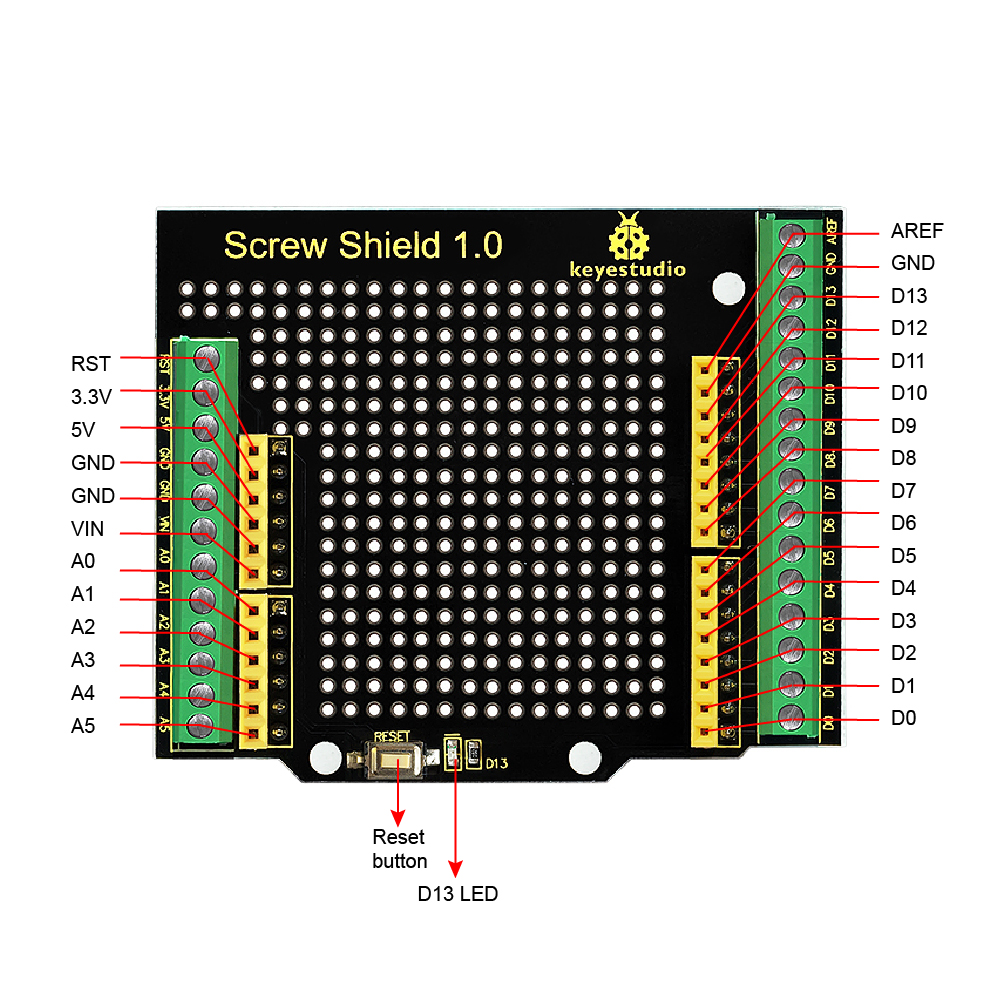

PINOUT:

Those interfaces marked red line are connected.

Example Use:

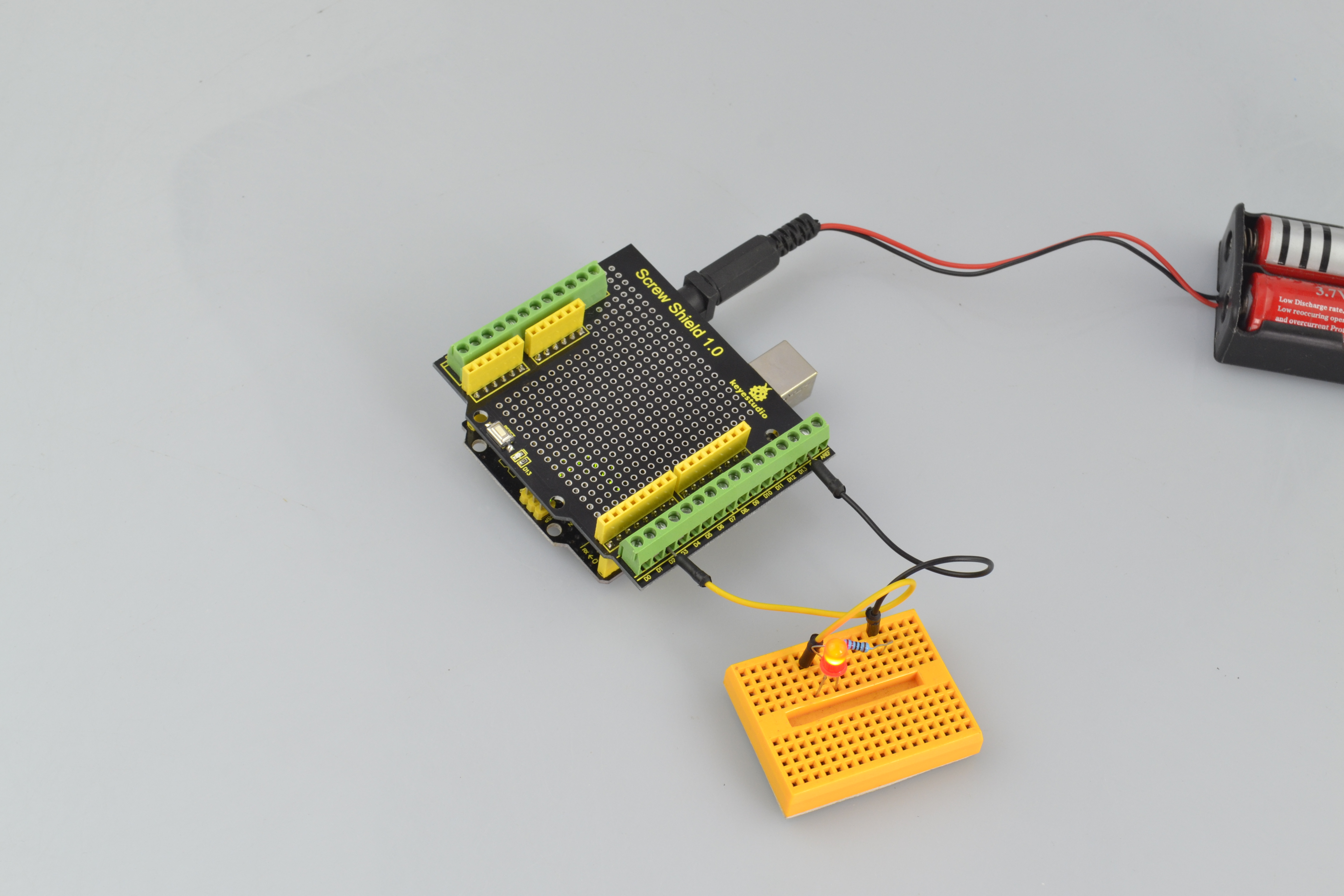

Stack the shield onto keyestudio UNO R3 board, and upload well the code, you could power the board via black DC jack to light up an external LED.
