KS0005 Keyestudio MEGA ProtoShield V3 with Breadboard

Introduction:

Keyestudio ProtoShield is particularly designed for the MEGA 2560. It makes

it easy for you to design custom circuits and solder electronics directly on it.

For convenient use, there is a large prototyping space of both connected and unconnected spaced through-holes on the shield.

There is also a soldering position reserved for SMD chip on the protoshield. You can easily solder SMD ICs on the prototyping area to test them with your Arduino

board.

It also extends out a row of power and ground through-holes, giving enough port resources.

You can even stick a tiny 170-holes breadboard (included) on the prototyping area. You can weld elements on the shield directly or connect circuits with tiny breadboard.

Features:

  • Can be plugged into the MEGA 2560 control board

  • Extends 5V, 3V and Arduino Vin pins

  • Comes with a Reset button

  • Comes with a power led and a D13 indicator

  • Extends an ICSP interface

  • Extends out all the control pins and power pins of Arduino

  • Able to build the prototyping circuits matched with Arduino

  • Can weld with 28PIN chip

  • Includes a tiny 170-hole breadboard

Controllers Compatible:

Technical Details:

  • Dimensions: 106mm x 56mm x 19mm

  • Weight (only MEGA protoshield): 27.2g

Dimensions:

Back View:

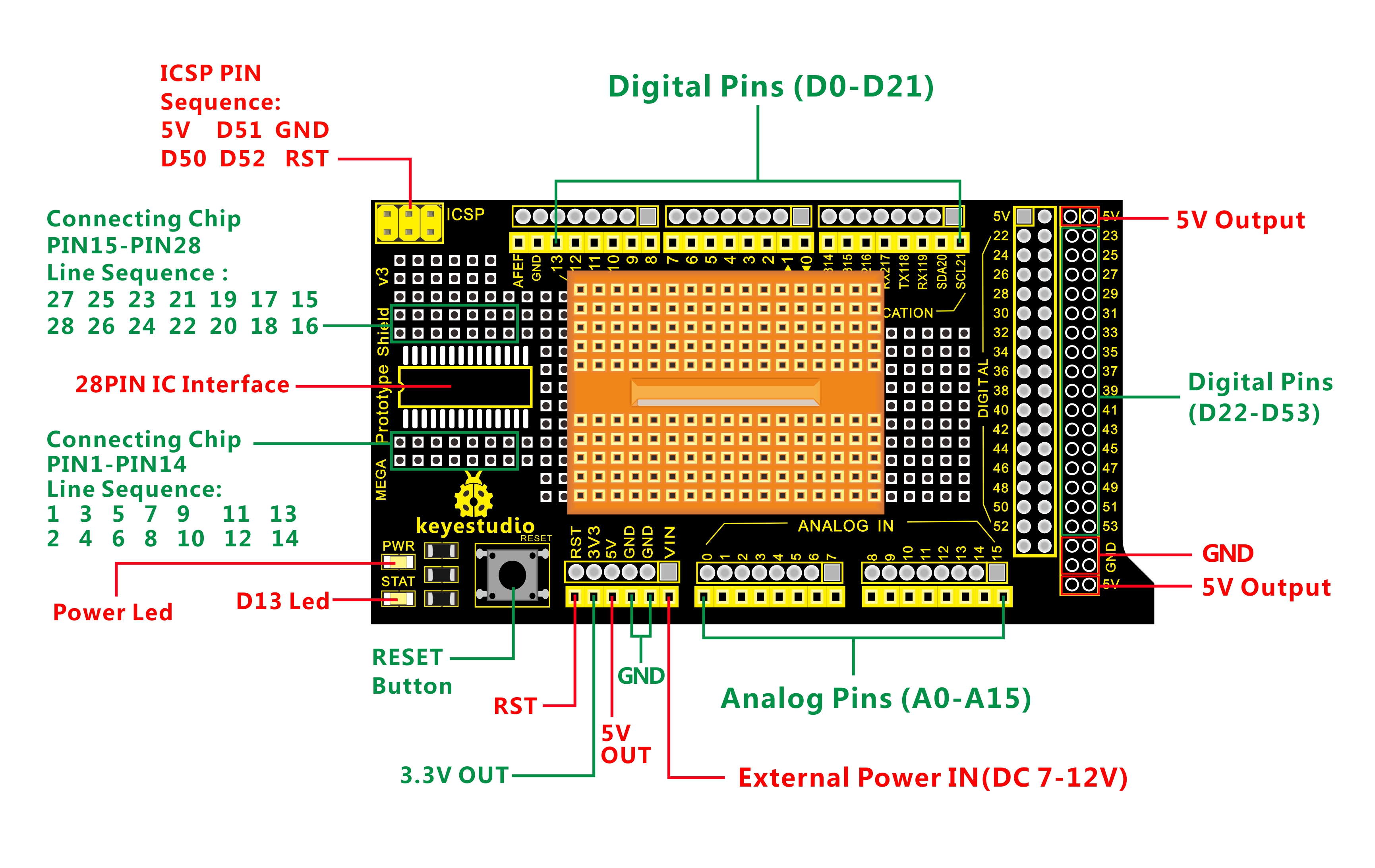

Pinout Instructions:

Tiny Breadboard:

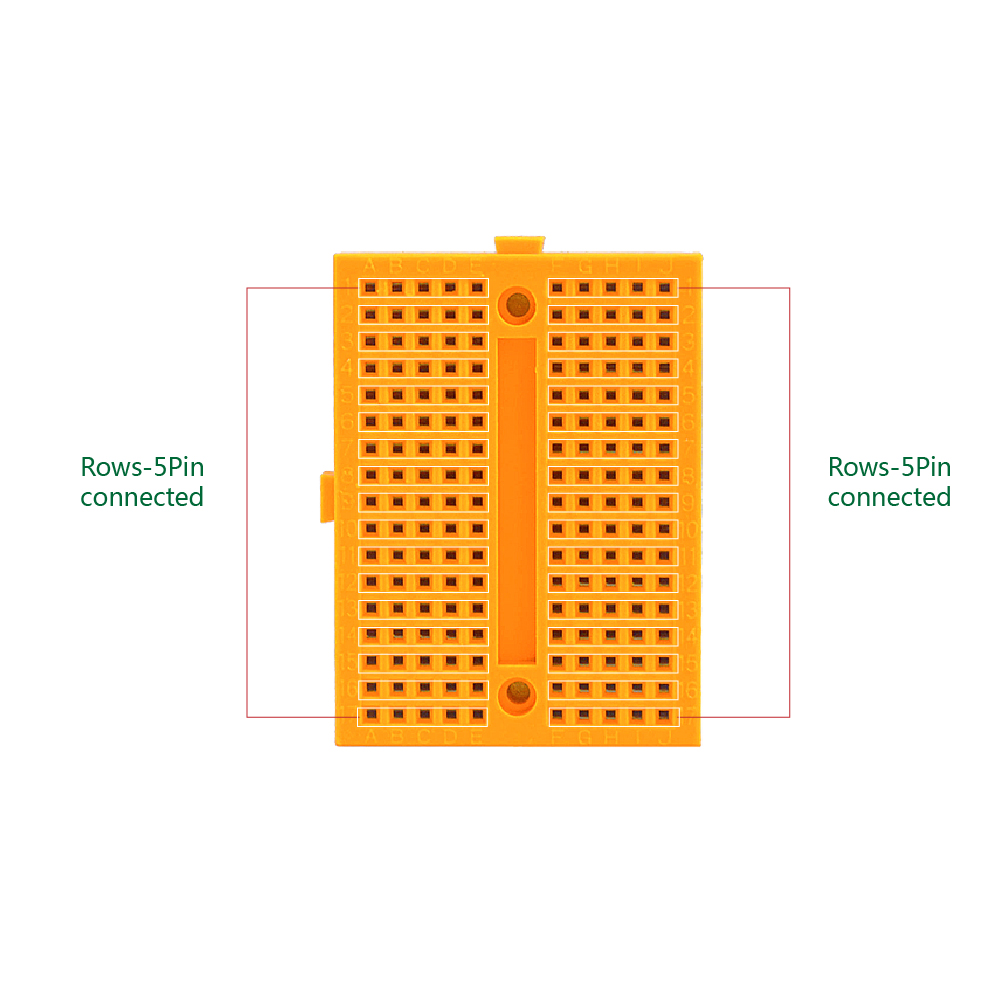

This is a solderless tiny breadboard. It has 10 columns, and 17 rows - a total of 170 tie in points. This tiny breadboard has a self-adhesive on the back.

You can stick it on the prototyping area of protoshield for solderless operation.

Example Use:

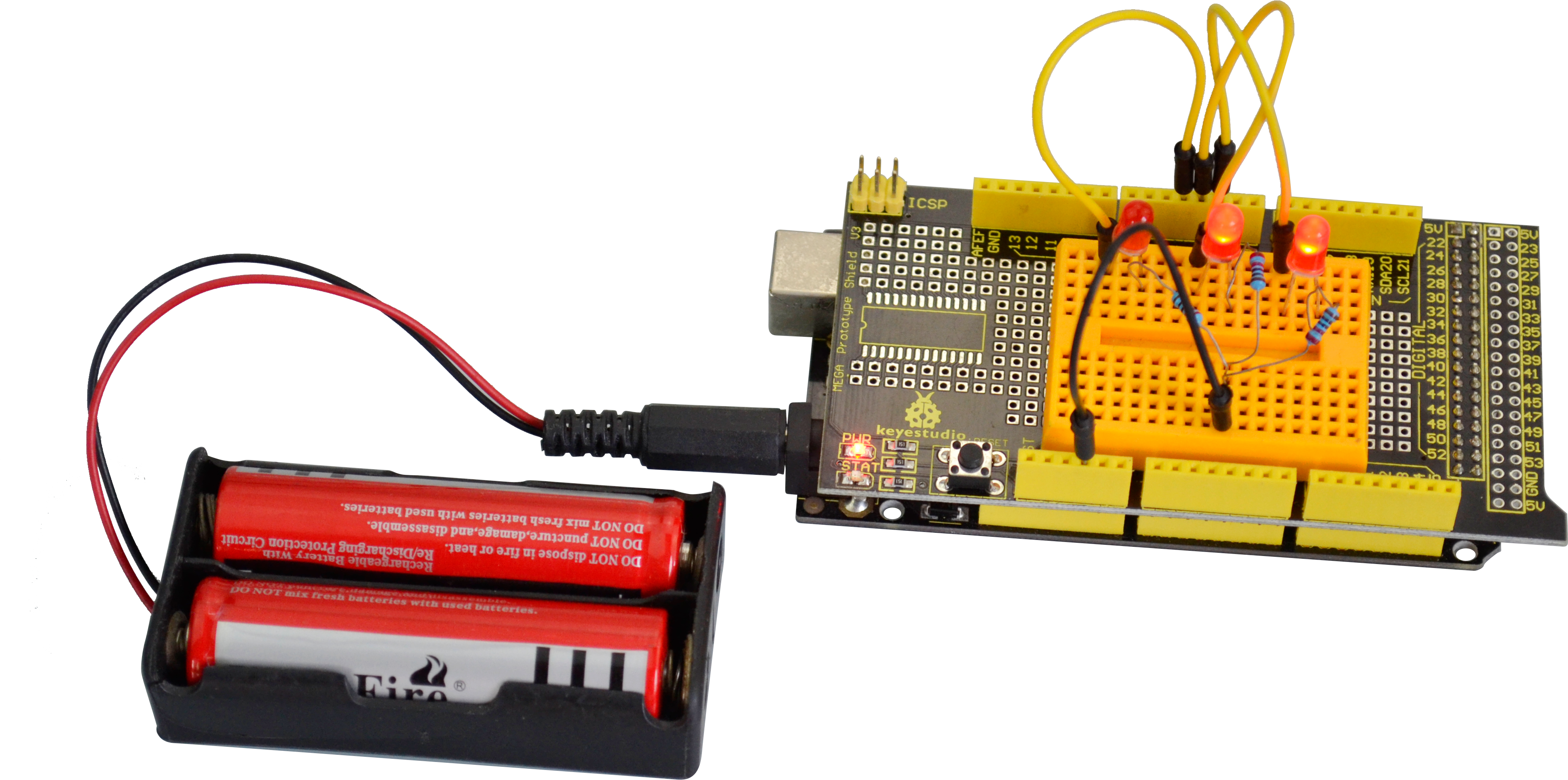

You can first stick the 170-tie points breadboard on the prototyping area of Proto Shield. Stack the shield onto UNO R3 board. Use several LEDs, resistors and breadboard jumper wires to build the circuit experiments.
